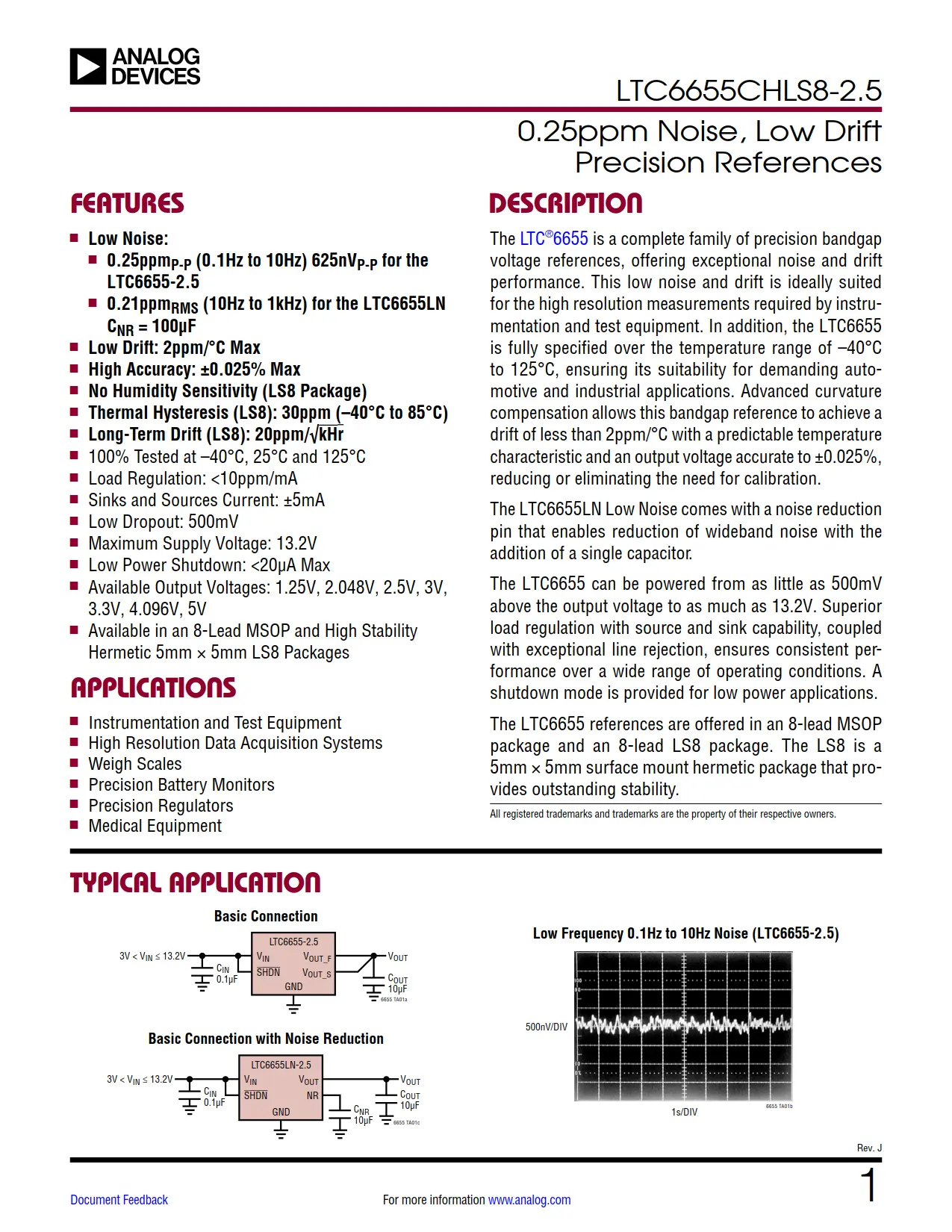

LTC6655CHLS8-2.5 DataSheet

LTC6655CHLS8-2.5 DataSheet

Part No.
LTC6655CHLS8-2.5
Part Marking
665525
Temperature
–40°C to 125°C
Package
8-Lead Ceramic LCC (5mm × 5mm)
File Size
1819 KB
Page
30 Pages
Manufacturer
Linear Technology
Views
1
Upload Time
2022-06-16 18:47:40
Update Time
6/16/2022
Description
IC VREF SERIES 0.05% 8CLCC
If you would like to buy it now or in the future, please email or add our skype hello@ic-component.com

LTC6655CHLS8-2.5 Features

■ Low Noise:
 □ 0.25ppmP-P (0.1Hz to 10Hz) 625nVP-P for the LTC6655-2.5
 □ 0.21ppmRMS (10Hz to 1kHz) for the LTC6655LN CNR = 100µF
■ Low Drift: 2ppm/°C Max
■ High Accuracy: ±0.025% Max
■ No Humidity Sensitivity (LS8 Package)
■ Thermal Hysteresis (LS8): 30ppm (–40°C to 85°C)
■ Long-Term Drift (LS8): 20ppm/√kHr
■ 100% Tested at –40°C, 25°C and 125°C
■ Load Regulation: <10ppm/mA
■ Sinks and Sources Current: ±5mA
■ Low Dropout: 500mV
■ Maximum Supply Voltage: 13.2V
■ Low Power Shutdown: <20µA Max
■ Available Output Voltages: 1.25V, 2.048V, 2.5V, 3V, 3.3V, 4.096V, 5V
■ Available in an 8-Lead MSOP and High Stability Hermetic 5mm × 5mm LS8 Packages

LTC6655CHLS8-2.5 Applications

■ Instrumentation and Test Equipment
■ High Resolution Data Acquisition Systems
■ Weigh Scales
■ Precision Battery Monitors
■ Precision Regulators
■ Medical Equipment

LTC6655CHLS8-2.5 Description

The LTC6655CHLS8-2.5 is a complete family of precision bandgap voltage references, offering exceptional noise and drift performance. This low noise and drift is ideally suited for the high resolution measurements required by instrumentation and test equipment. In addition, the LTC6655 is fully specified over the temperature range of –40°C to 125°C, ensuring its suitability for demanding automotive and industrial applications. Advanced curvature compensation allows this bandgap reference to achieve a drift of less than 2ppm/°C with a predictable temperature characteristic and an output voltage accurate to ±0.025%, reducing or eliminating the need for calibration.

The LTC6655 can be powered from as little as 500mV above the output voltage to as much as 13.2V. Superior load regulation with source and sink capability, coupled with exceptional line rejection, ensures consistent performance over a wide range of operating conditions. A shutdown mode is provided for low power applications.

The LTC6655 references are offered in an 8-lead MSOP package and an 8-lead LS8 package. The LS8 is a 5mm × 5mm surface mount hermetic package that provides outstanding stability.
