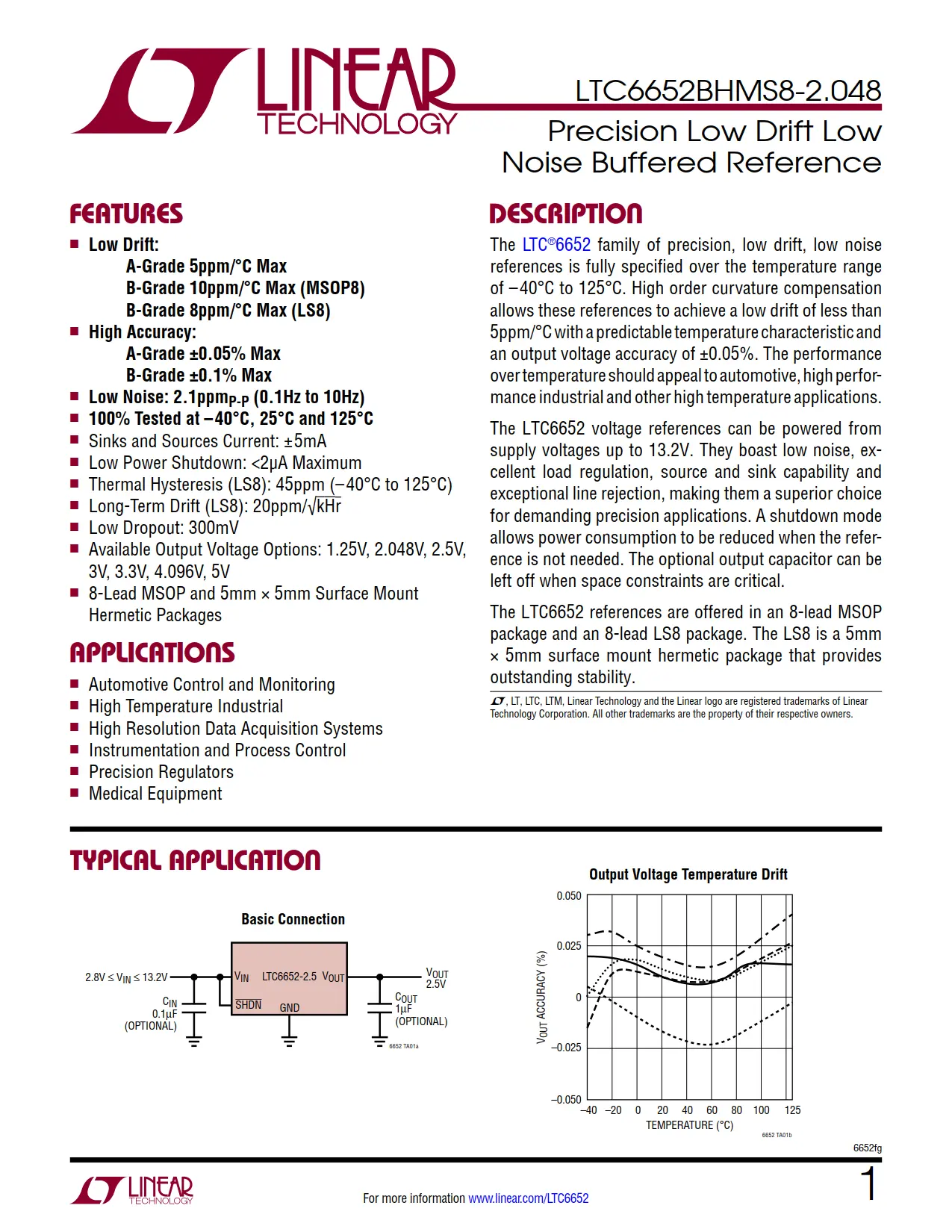

LTC6652BHMS8-2.048 DataSheet

LTC6652BHMS8-2.048 DataSheet

Part No.
LTC6652BHMS8-2.048
Part Marking
LTCVJ
Temperature
–40°C to 125°C
Package
8-Lead Plastic MSOP
File Size
498 KB
Page
20 Pages
Manufacturer
Linear Technology
Views
1
Upload Time
2022-06-22 11:44:34
Update Time
2022-06-22
Description
IC VREF SERIES 0.1% 8MSOP
If you would like to buy it now or in the future, please email or add our skype hello@ic-component.com

LTC6652BHMS8-2.048 Features

■ Low Drift:
 □ A-Grade 5ppm/°C Max
 □ B-Grade 10ppm/°C Max (MSOP8)
 □ B-Grade 8ppm/°C Max (LS8)
■ High Accuracy:
 □ A-Grade ±0.05% Max
 □ B-Grade ±0.1% Max
■ Low Noise: 2.1ppmP-P (0.1Hz to 10Hz)
■ 100% Tested at –40°C, 25°C and 125°C
■ Sinks and Sources Current: ±5mA
■ Low Power Shutdown: <2μA Maximum
■ Thermal Hysteresis (LS8): 45ppm (–40°C to 125°C)
■ Long-Term Drift (LS8): 20ppm/√kHr
■ Low Dropout: 300mV
■ Available Output Voltage Options: 1.25V, 2.048V, 2.5V, 3V, 3.3V, 4.096V, 5V
■ 8-Lead MSOP and 5mm × 5mm Surface Mount Hermetic Packages

LTC6652BHMS8-2.048 Applications

■ Automotive Control and Monitoring
■ High Temperature Industrial
■ High Resolution Data Acquisition Systems
■ Instrumentation and Process Control
■ Precision Regulators
■ Medical Equipment

LTC6652BHMS8-2.048 Description

The LTC6652BHMS8-2.048 family of precision, low drift, low noise references is fully specified over the temperature range of –40°C to 125°C. High order curvature compensation allows these references to achieve a low drift of less than 5ppm/°C with a predictable temperature characteristic and an output voltage accuracy of ±0.05%. The performance over temperature should appeal to automotive, high performance industrial and other high temperature applications.

The LTC6652BHMS8-2.048 voltage references can be powered from supply voltages up to 13.2V. They boast low noise, excellent load regulation, source and sink capability and exceptional line rejection, making them a superior choice for demanding precision applications. A shutdown mode allows power consumption to be reduced when the reference is not needed. The optional output capacitor can be left off when space constraints are critical.

The LTC6652BHMS8-2.048 references are offered in an 8-lead MSOP package and an 8-lead LS8 package. The LS8 is a 5mm × 5mm surface mount hermetic package that provides outstanding stability.
