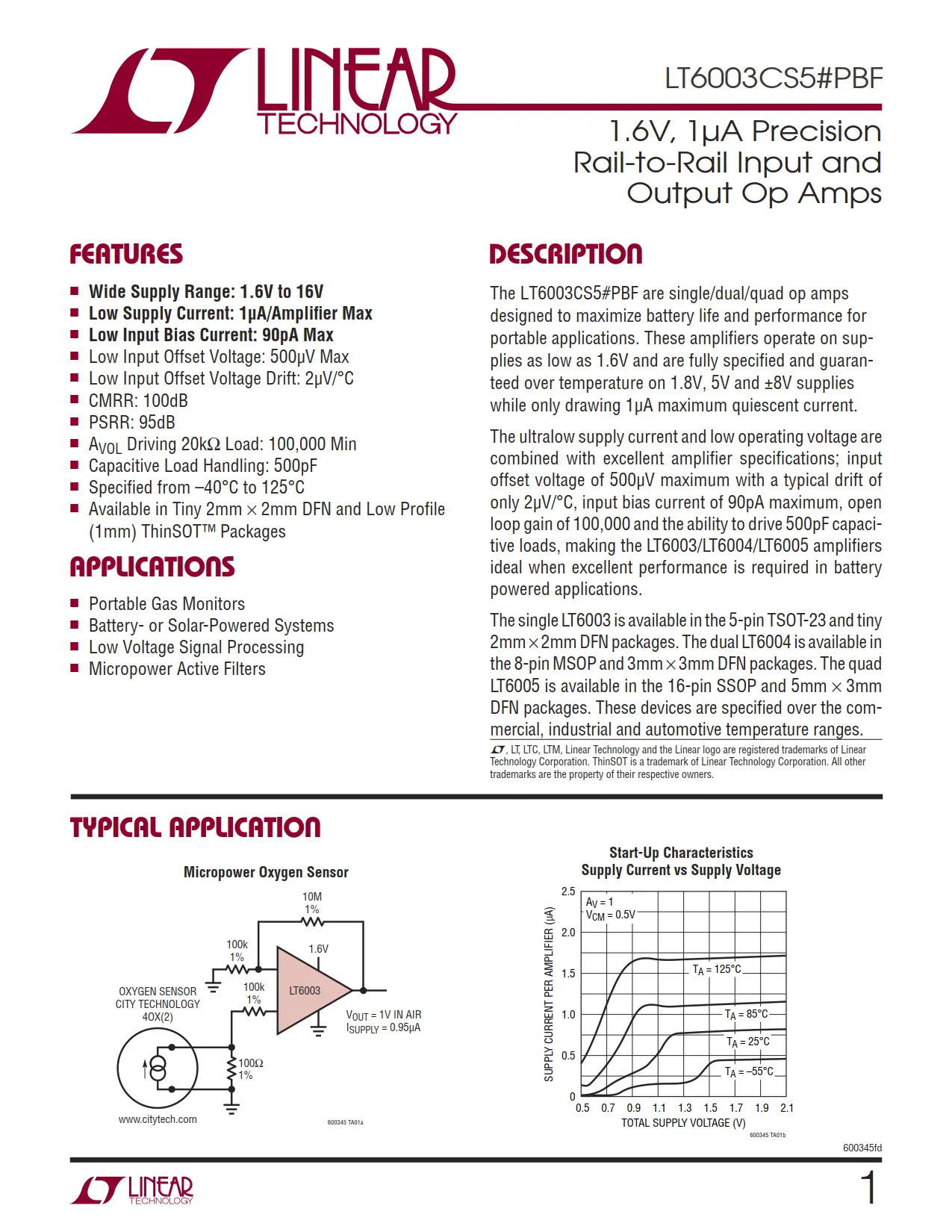

LT6003CS5#PBF DataSheet

LT6003CS5#PBF DataSheet

Part No.
LT6003CS5#PBF
Part Marking
LTCKG
Temperature
0°C to 70°C
Package
5-Lead Plastic TSOT-23
File Size
1127 KB
Page
20 Pages
Manufacturer
Linear Technology
Views
3
Upload Time
2022-05-06 10:42:49
Update Time
2022-05-06
Description
IC OPAMP GP 1 CIRCUIT 4DFN
If you would like to buy it now or in the future, please email or add our skype hello@ic-component.com

LT6003CS5#PBF Features

■ Wide Supply Range: 1.6V to 16V
■ Low Supply Current: 1µA/Amplifier Max
■ Low Input Bias Current: 90pA Max
■ Low Input Offset Voltage: 500µV Max
■ Low Input Offset Voltage Drift: 2µV/°C
■ CMRR: 100dB
■ PSRR: 95dB
■ AVOL Driving 20kΩ Load: 100,000 Min
■ Capacitive Load Handling: 500pF
■ Specified from –40°C to 125°C
■ Available in Tiny 2mm × 2mm DFN and Low Profile (1mm) ThinSOT™ Packages

LT6003CS5#PBF Applications

■ Portable Gas Monitors
■ Battery- or Solar-Powered Systems
■ Low Voltage Signal Processing
■ Micropower Active Filters

LT6003CS5#PBF Description

The LT6003CS5#PBF is single op amps designed to maximize battery life and performance for portable applications. These amplifiers operate on sup-plies as low as 1.6V and are fully specified and guaran-teed over temperature on 1.8V, 5V and ±8V supplies while only drawing 1µA maximum quiescent current.

The ultralow supply current and low operating voltage are combined with excellent amplifier specifications; input offset voltage of 500µV maximum with a typical drift of only 2µV/°C, input bias current of 90pA maximum, open loop gain of 100,000 and the ability to drive 500pF capaci-tive loads, making the LT6003CS5#PBF amplifiers ideal when excellent performance is required in battery powered applications.

The LT6003CS5#PBF is available in the 5-pin TSOT-23 and tiny 2mm × 2mm DFN packages. These devices are specified over the com-mercial, industrial and automotive temperature ranges.
