LT6700IS6-3 DataSheet

LT6700IS6-3 DataSheet

Part No.
LT6700IS6-3
Part Marking
LTADM
Temperature
–40°C to 85°C
Package
6-Lead Plastic TSOT-23
File Size
314 KB
Page
20 Pages
Manufacturer
Linear Technology
Views
2
Upload Time
2022-06-10 12:10:16
Update Time
2022-06-10
Description
IC COMP DUAL 400MV REF TSOT23-6
If you would like to buy it now or in the future, please email or add our skype hello@ic-component.com

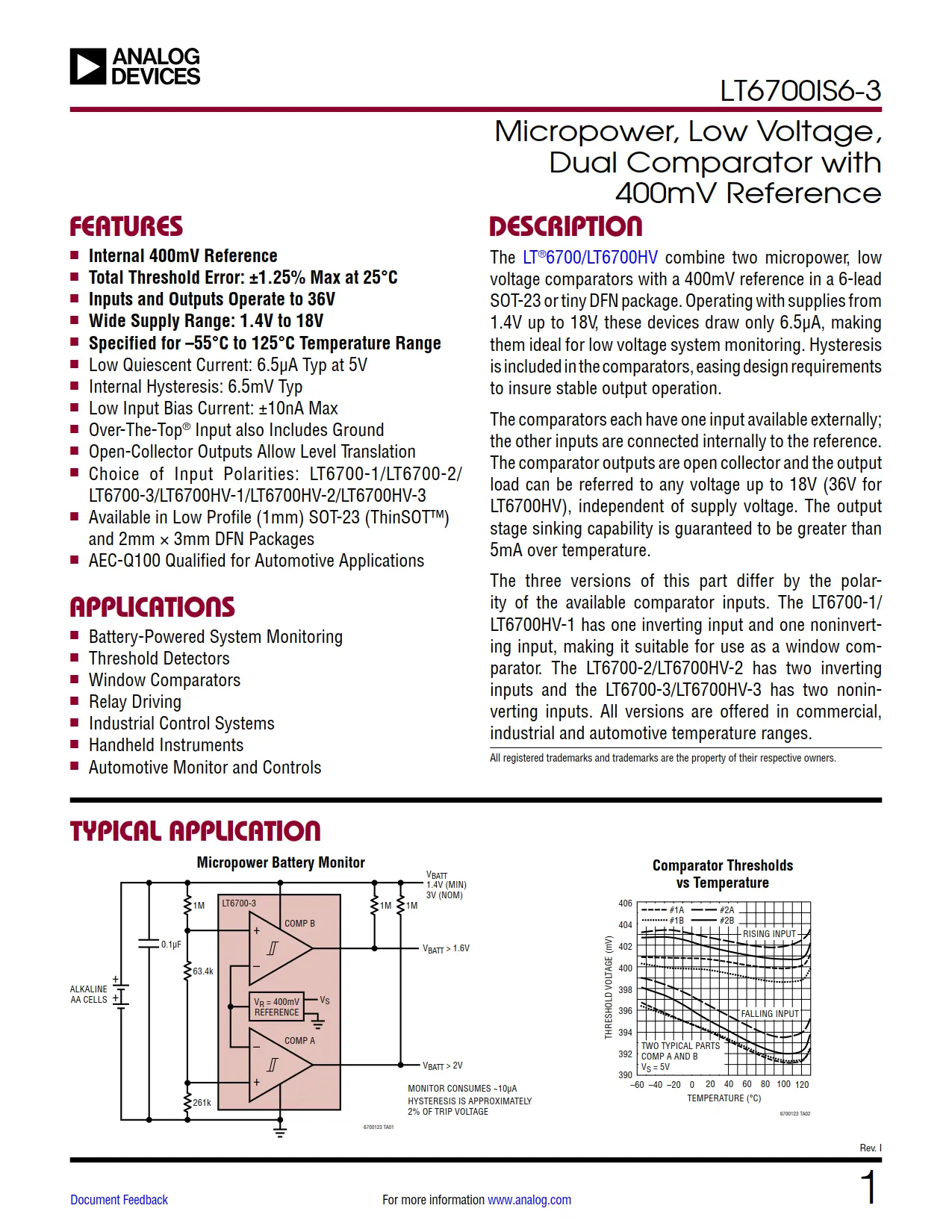

LT6700IS6-3 Features

■ Internal 400mV Reference
■ Total Threshold Error: ±1.25% Max at 25°C
■ Inputs and Outputs Operate to 36V
■ Wide Supply Range: 1.4V to 18V
■ Specified for –55°C to 125°C Temperature Range
■ Low Quiescent Current: 6.5μA Typ at 5V
■ Internal Hysteresis: 6.5mV Typ
■ Low Input Bias Current: ±10nA Max
■ Over-The-Top® Input also Includes Ground
■ Open-Collector Outputs Allow Level Translation
■ Choice of Input Polarities: LT6700-1/LT6700-2/ LT6700-3/LT6700HV-1/LT6700HV-2/LT6700HV-3
■ Available in Low Profile (1mm) SOT-23 (ThinSOT™) and 2mm × 3mm DFN Packages
■ AEC-Q100 Qualified for Automotive Applications

LT6700IS6-3 Applications

■ Battery-Powered System Monitoring
■ Threshold Detectors
■ Window Comparators
■ Relay Driving
■ Industrial Control Systems
■ Handheld Instruments
■ Automotive Monitor and Controls

LT6700IS6-3 Description

The LT6700IS6-3 combine two micropower, low voltage comparators with a 400mV reference in a 6-lead SOT-23 or tiny DFN package. Operating with supplies from 1.4V up to 18V, these devices draw only 6.5μA, making them ideal for low voltage system monitoring. Hysteresis is included in the comparators, easing design requirements to insure stable output operation.

The comparators each have one input available externally; the other inputs are connected internally to the reference. The comparator outputs are open collector and the output load can be referred to any voltage up to 18V (36V for LT6700HV), independent of supply voltage. The output stage sinking capability is guaranteed to be greater than 5mA over temperature.

The three versions of this part differ by the polarity of the available comparator inputs. The LT6700IS6-3 has two noninverting inputs. All versions are offered in commercial, industrial and automotive temperature ranges.
