LTC6241IDD DataSheet

LTC6241IDD DataSheet

Part No.
LTC6241IDD
Part Marking
LBPD
Temperature
–40°C to 85°C
Package
8-Lead (3mm × 3mm) Plastic DFN
File Size
416 KB
Page
32 Pages
Manufacturer
Linear Technology
Views
1
Upload Time
2022-06-16 18:47:52
Update Time
6/16/2022
Description
IC CMOS 2 CIRCUIT 8DFN
If you would like to buy it now or in the future, please email or add our skype hello@ic-component.com

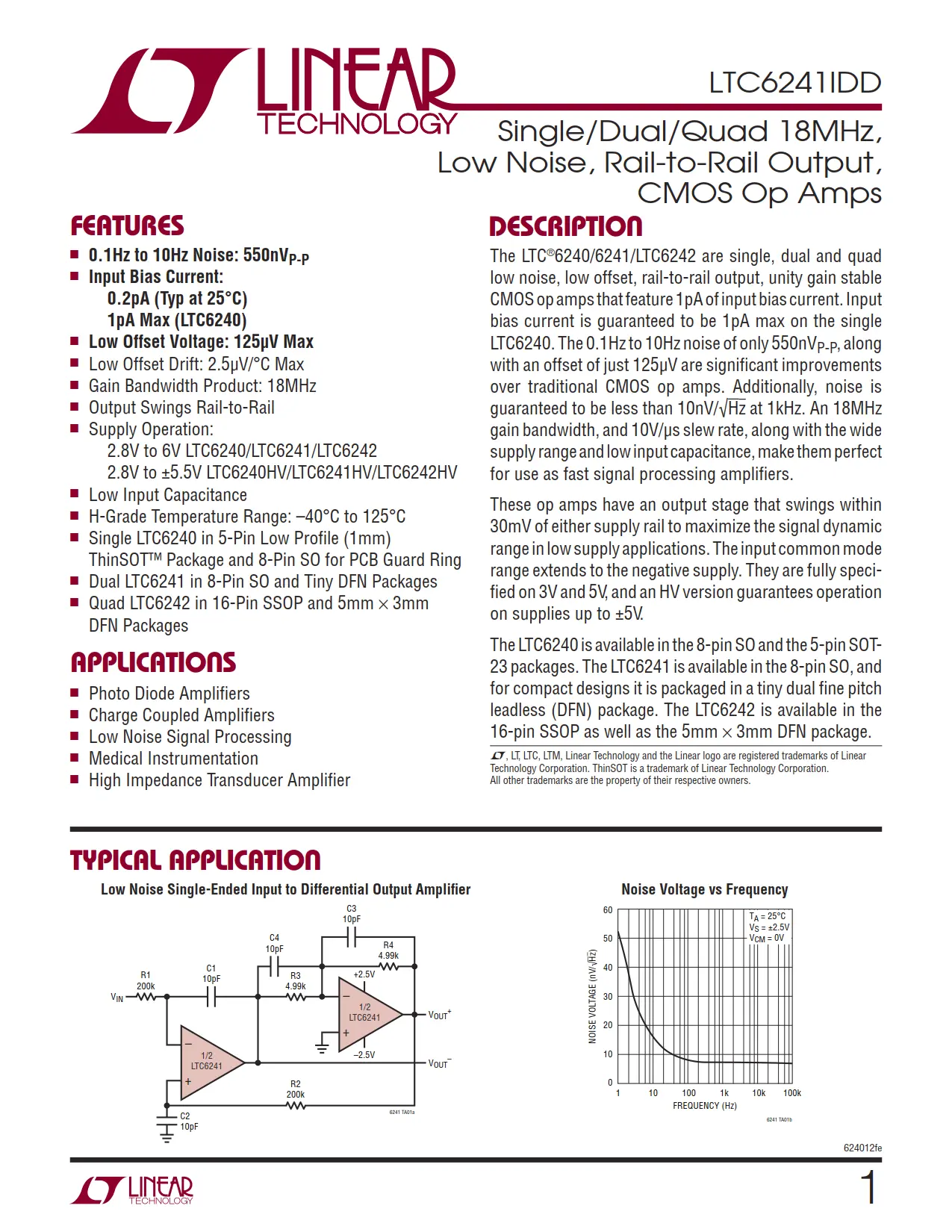

LTC6241IDD Features

■ 0.1Hz to 10Hz Noise: 550nVP-P
■ Input Bias Current:
 □ 0.2pA (Typ at 25°C)
 □ 1pA Max (LTC6240)
■ Low Offset Voltage: 125μV Max
■ Low Offset Drift: 2.5μV/°C Max
■ Gain Bandwidth Product: 18MHz
■ Output Swings Rail-to-Rail
■ Supply Operation:
 □ 2.8V to 6V LTC6240/LTC6241/LTC6242
 □ 2.8V to ±5.5V LTC6240HV/LTC6241HV/LTC6242HV
■ Low Input Capacitance
■ H-Grade Temperature Range: –40°C to 125°C
■ Single LTC6240 in 5-Pin Low Profile (1mm) ThinSOT™ Package and 8-Pin SO for PCB Guard Ring
■ Dual LTC6241 in 8-Pin SO and Tiny DFN Packages
■ Quad LTC6242 in 16-Pin SSOP and 5mm × 3mm DFN Packages

LTC6241IDD Applications

■ Photo Diode Amplifiers
■ Charge Coupled Amplifiers
■ Low Noise Signal Processing
■ Medical Instrumentation
■ High Impedance Transducer Amplifier

LTC6241IDD Description

The LTC6241IDD are single, dual and quad low noise, low offset, rail-to-rail output, unity gain stable CMOS op amps that feature 1pA of input bias current. Input bias current is guaranteed to be 1pA max on the single LTC6240. The 0.1Hz to 10Hz noise of only 550nVP-P, along with an offset of just 125μV are significant improvements over traditional CMOS op amps. Additionally, noise is guaranteed to be less than 10nV/√Hz at 1kHz. An 18MHz gain bandwidth, and 10V/μs slew rate, along with the wide supply range and low input capacitance, make them perfect for use as fast signal processing amplifiers.

These op amps have an output stage that swings within 30mV of either supply rail to maximize the signal dynamic range in low supply applications. The input common mode range extends to the negative supply. They are fully specified on 3V and 5V, and an HV version guarantees operation on supplies up to ±5V.

The LTC6241 is available in the 8-pin SO, and for compact designs it is packaged in a tiny dual fine pitch leadless (DFN) package.
