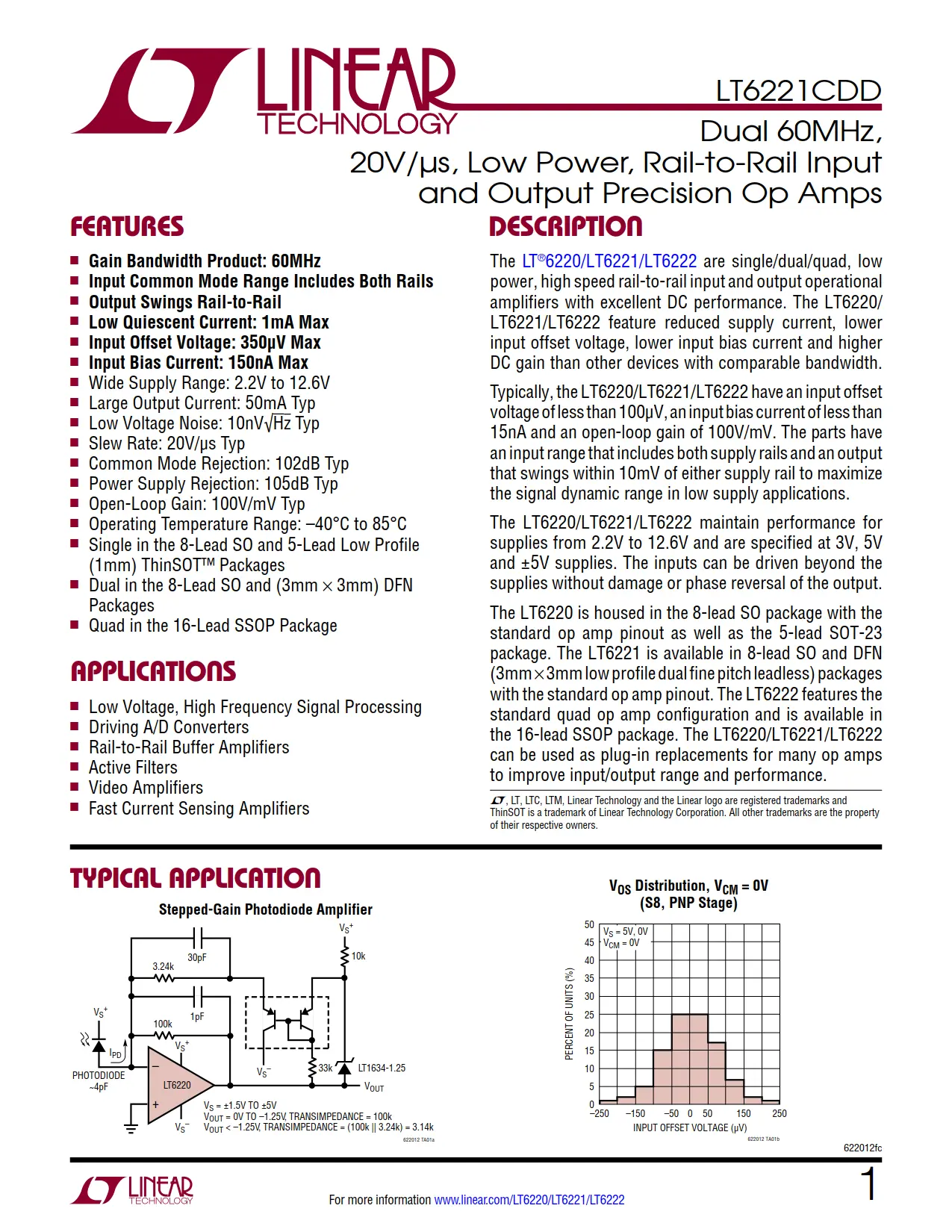

LT6221CDD DataSheet

LT6221CDD DataSheet

Part No.
LT6221CDD
Part Marking
LADZ
Temperature
0°C to 70°C
Package
8-Lead (3mm × 3mm) Plastic DFN
File Size
324 KB
Page
22 Pages
Manufacturer
Linear Technology
Views
0
Upload Time
2022-08-01 11:46:44
Update Time
2022-08-01
Description
IC OPAMP GP 2 CIRCUIT 8DFN
If you would like to buy it now or in the future, please email or add our skype hello@ic-component.com

LT6221CDD Features

■ Gain Bandwidth Product: 60MHz
■ Input Common Mode Range Includes Both Rails
■ Output Swings Rail-to-Rail
■ Low Quiescent Current: 1mA Max
■ Input Offset Voltage: 350μV Max
■ Input Bias Current: 150nA Max
■ Wide Supply Range: 2.2V to 12.6V
■ Large Output Current: 50mA Typ
■ Low Voltage Noise: 10nV√Hz Typ
■ Slew Rate: 20V/μs Typ
■ Common Mode Rejection: 102dB Typ
■ Power Supply Rejection: 105dB Typ
■ Open-Loop Gain: 100V/mV Typ
■ Operating Temperature Range: –40°C to 85°C
■ Single in the 8-Lead SO and 5-Lead Low Profile (1mm) ThinSOT™ Packages
■ Dual in the 8-Lead SO and (3mm × 3mm) DFN Packages
■ Quad in the 16-Lead SSOP Package

LT6221CDD Applications

■ Low Voltage, High Frequency Signal Processing
■ Driving A/D Converters
■ Rail-to-Rail Buffer Amplifiers
■ Active Filters
■ Video Amplifiers
■ Fast Current Sensing Amplifiers

LT6221CDD Description

The LT6221CDD is dual, low power, high speed rail-to-rail input and output operational amplifiers with excellent DC performance. The LT6221CDD feature reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth.

Typically, the LT6221CDD have an input offset voltage of less than 100μV, an input bias current of less than 15nA and an open-loop gain of 100V/mV. The parts have an input range that includes both supply rails and an output that swings within 10mV of either supply rail to maximize the signal dynamic range in low supply applications.

The LT6221CDD maintain performance for supplies from 2.2V to 12.6V and are specified at 3V, 5V and ±5V supplies. The inputs can be driven beyond the supplies without damage or phase reversal of the output.

The LT6221CDD is available in 8-lead SO and DFN (3mm × 3mm low profile dual fine pitch leadless) packages with the standard op amp pinout. The LT6221CDD can be used as plug-in replacements for many op amps to improve input/output range and performance.
