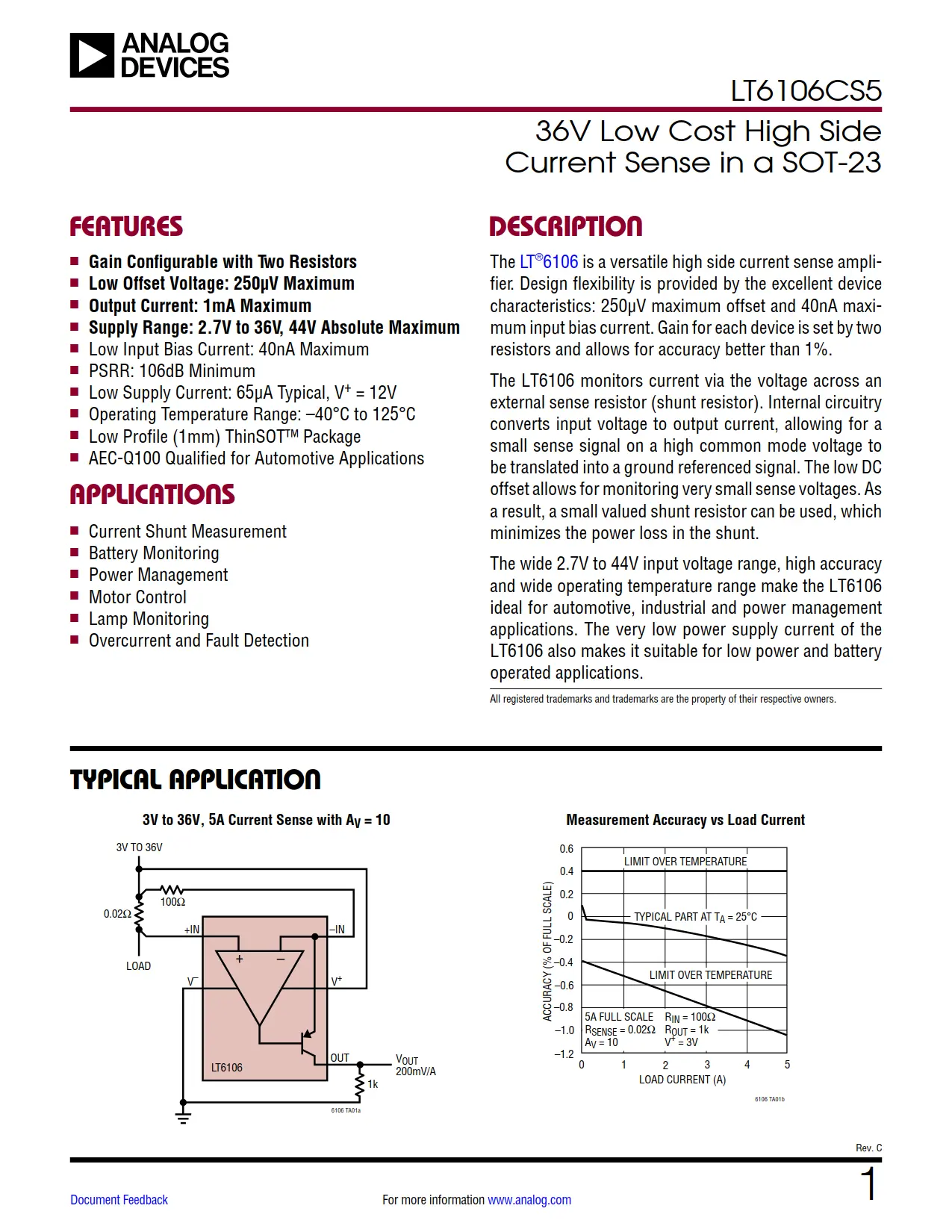

LT6106CS5 DataSheet

LT6106CS5 DataSheet

Part No.
LT6106CS5
Part Marking
LTCWK
Temperature
0°C to 70°C
Package
5-Lead Plastic TSOT-23
File Size
1241 KB
Page
14 Pages
Manufacturer
Linear Technology
Views
1
Upload Time
2022-06-06 11:07:58
Update Time
2022-06-06
Description
IC CURR SENSE 1 CIRCUIT TSOT23-5
If you would like to buy it now or in the future, please email or add our skype hello@ic-component.com

LT6106CS5 Features

■ Gain Configurable with Two Resistors
■ Low Offset Voltage: 250µV Maximum
■ Output Current: 1mA Maximum
■ Supply Range: 2.7V to 36V, 44V Absolute Maximum
■ Low Input Bias Current: 40nA Maximum
■ PSRR: 106dB Minimum
■ Low Supply Current: 65µA Typical, V+ = 12V
■ Operating Temperature Range: –40°C to 125°C
■ Low Profile (1mm) ThinSOT™ Package
■ AEC-Q100 Qualified for Automotive Applications

LT6106CS5 Applications

■ Current Shunt Measurement
■ Battery Monitoring
■ Power Management
■ Motor Control
■ Lamp Monitoring
■ Overcurrent and Fault Detection

LT6106CS5 Description

The LT6106CS5 is a versatile high side current sense amplifier. Design flexibility is provided by the excellent device characteristics: 250µV maximum offset and 40nA maximum input bias current. Gain for each device is set by two resistors and allows for accuracy better than 1%.

The LT6106CS5 monitors current via the voltage across an external sense resistor (shunt resistor). Internal circuitry converts input voltage to output current, allowing for a small sense signal on a high common mode voltage to be translated into a ground referenced signal. The low DC offset allows for monitoring very small sense voltages. As a result, a small valued shunt resistor can be used, which minimizes the power loss in the shunt.

The wide 2.7V to 44V input voltage range, high accuracy and wide operating temperature range make the LT6106 ideal for automotive, industrial and power management applications. The very low power supply current of the LT6106 also makes it suitable for low power and battery operated applications.
