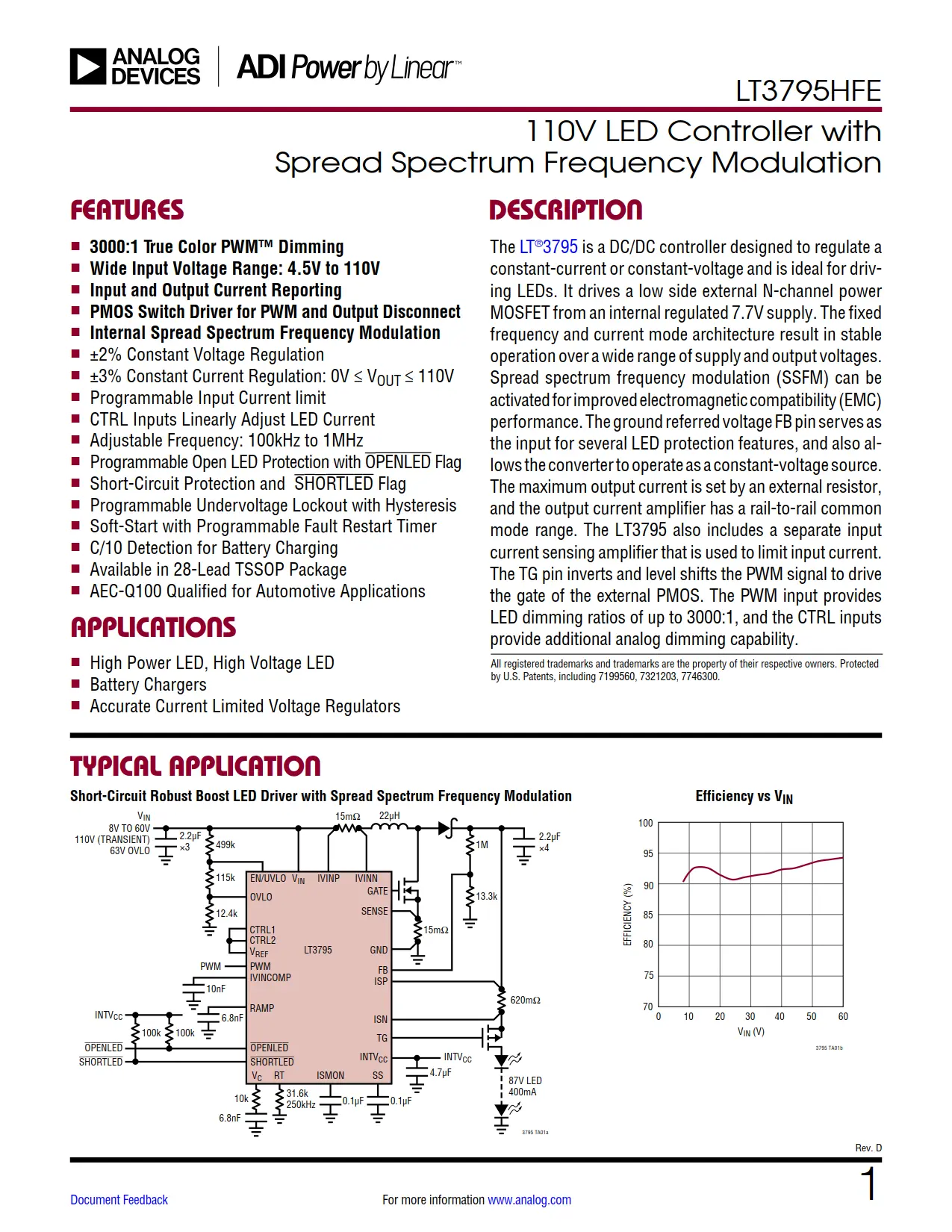

LT3795HFE DataSheet

LT3795HFE DataSheet

Part No.
LT3795HFE
Part Marking
LT3795FE
Temperature
–40°C to 150°C
Package
28-Lead Plastic TSSOP
File Size
2008 KB
Page
32 Pages
Manufacturer
Linear Technology
Views
1
Upload Time
2022-06-16 18:47:23
Update Time
6/16/2022
Description
IC LED DRIVER CTRLR PWM 28TSSOP
If you would like to buy it now or in the future, please email or add our skype hello@ic-component.com

LT3795HFE Features

■ 3000:1 True Color PWM™ Dimming
■ Wide Input Voltage Range: 4.5V to 110V
■ Input and Output Current Reporting
■ PMOS Switch Driver for PWM and Output Disconnect
■ Internal Spread Spectrum Frequency Modulation
■ ±2% Constant Voltage Regulation
■ ±3% Constant Current Regulation: 0V ≤ VOUT ≤ 110V
■ Programmable Input Current limit
■ CTRL Inputs Linearly Adjust LED Current
■ Adjustable Frequency: 100kHz to 1MHz
■ Programmable Open LED Protection with OPENLED Flag
■ Short-Circuit Protection and SHORTLED Flag
■ Programmable Undervoltage Lockout with Hysteresis
■ Soft-Start with Programmable Fault Restart Timer
■ C/10 Detection for Battery Charging
■ Available in 28-Lead TSSOP Package
■ AEC-Q100 Qualified for Automotive Applications

LT3795HFE Applications

■ High Power LED, High Voltage LED
■ Battery Chargers
■ Accurate Current Limited Voltage Regulators

LT3795HFE Description

The LT3795HFE is a DC/DC controller designed to regulate a constant-current or constant-voltage and is ideal for driving LEDs. It drives a low side external N-channel power MOSFET from an internal regulated 7.7V supply. The fixed frequency and current mode architecture result in stable operation over a wide range of supply and output voltages. Spread spectrum frequency modulation (SSFM) can be activated for improved electromagnetic compatibility (EMC) performance. The ground referred voltage FB pin serves as the input for several LED protection features, and also allows the converter to operate as a constant-voltage source. The maximum output current is set by an external resistor, and the output current amplifier has a rail-to-rail common mode range. The LT3795 also includes a separate input current sensing amplifier that is used to limit input current. The TG pin inverts and level shifts the PWM signal to drive the gate of the external PMOS. The PWM input provides LED dimming ratios of up to 3000:1, and the CTRL inputs provide additional analog dimming capability.
