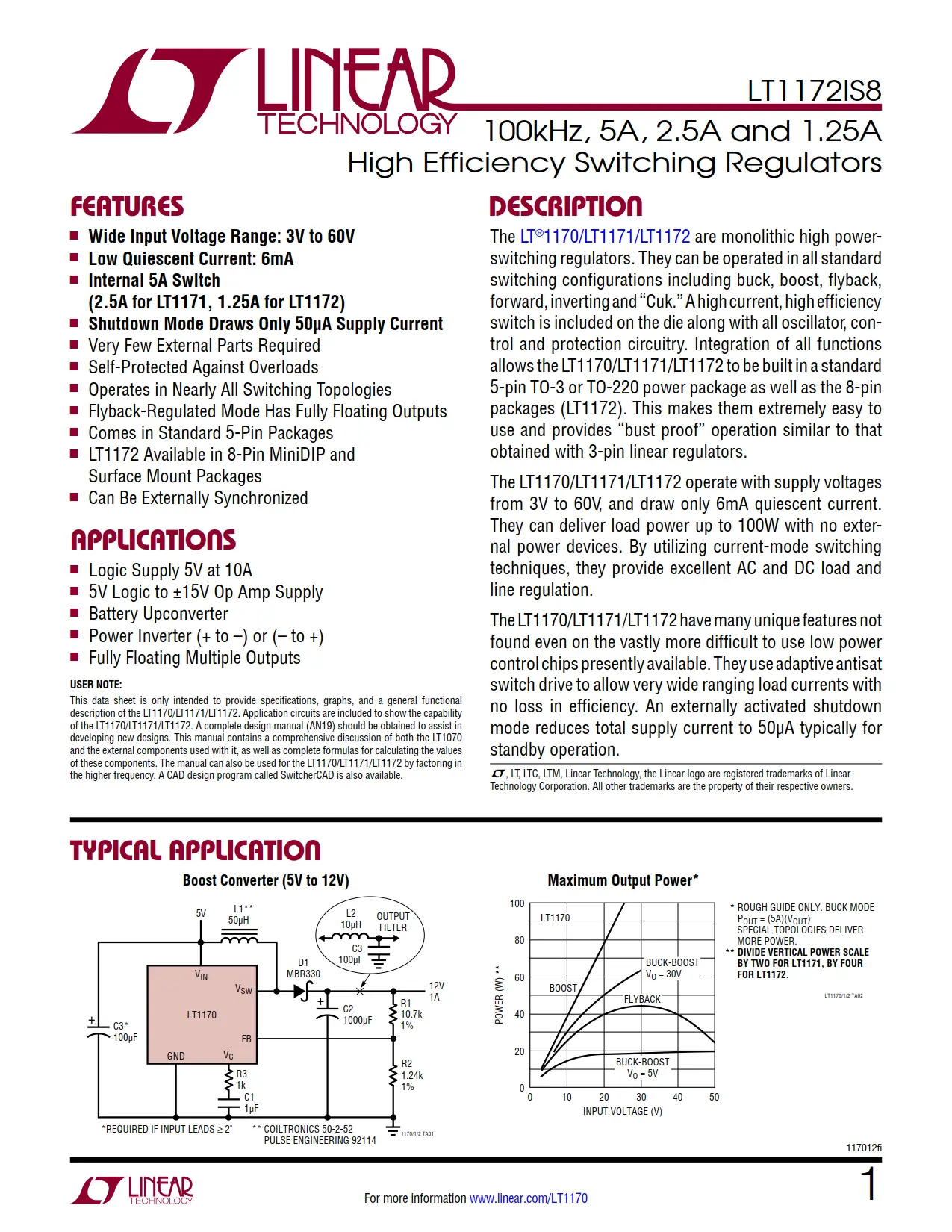

LT1172IS8 DataSheet

LT1172IS8 DataSheet

Part No.
LT1172IS8
Part Marking
1172I
Temperature
–40°C to 100°C
Package
8-Lead PDIP or 8-Lead Plastic SO
File Size
285 KB
Page
24 Pages
Manufacturer
Linear Technology
Views
1
Upload Time
2022-06-05 09:55:46
Update Time
2022-06-05
Description
IC REG MULTI CONFG ADJ 8SOIC
If you would like to buy it now or in the future, please email or add our skype hello@ic-component.com

LT1172IS8 Features

■ Wide Input Voltage Range: 3V to 60V
■ Low Quiescent Current: 6mA
■ Internal 5A Switch (2.5A for LT1171, 1.25A for LT1172)
■ Shutdown Mode Draws Only 50µA Supply Current
■ Very Few External Parts Required
■ Self-Protected Against Overloads
■ Operates in Nearly All Switching Topologies
■ Flyback-Regulated Mode Has Fully Floating Outputs
■ Comes in Standard 5-Pin Packages
■ LT1172 Available in 8-Pin MiniDIP and Surface Mount Packages
■ Can Be Externally Synchronized

LT1172IS8 Applications

■ Logic Supply 5V at 10A
■ 5V Logic to ±15V Op Amp Supply
■ Battery Upconverter
■ Power Inverter (+ to –) or (– to +)
■ Fully Floating Multiple Outputs

LT1172IS8 Description

The LT1172IS8 are monolithic high powerswitching regulators. They can be operated in all standard switching configurations including buck, boost, flyback, forward, inverting and “Cuk.” A high current, high efficiency switch is included on the die along with all oscillator, control and protection circuitry. Integration of all functions allows the LT1172IS8 to be built in a standard 5-pin TO-3 or TO-220 power package as well as the 8-pin packages (LT1172). This makes them extremely easy to use and provides “bust proof” operation similar to that obtained with 3-pin linear regulators.

The LT1172IS8 operate with supply voltages from 3V to 60V, and draw only 6mA quiescent current. They can deliver load power up to 100W with no external power devices. By utilizing current-mode switching techniques, they provide excellent AC and DC load and line regulation.

The LT1172IS8 have many unique features not found even on the vastly more difficult to use low power control chips presently available. They use adaptive antisat switch drive to allow very wide ranging load currents with no loss in efficiency. An externally activated shutdown mode reduces total supply current to 50µA typically for standby operation.
